Wire Type IQI – ASTM E747

Product Description

Download :

Wire Type IQI – ASTM E747

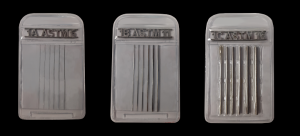

ASTM E747 wire penetrameters are accepted by ASME V and AWS as an alternative to plaque IQI’s. Encapsulated in vinyl for durability, they are available in 4 set (A, B, C and D) in stainless, aluminum and copper. Set A and B are also available in Inconel and titanium.

Find below the most common penetrameters:

• QPX2010: Wire Penetrameter ASTM E747-97, Set A – Stainless, 2″ long.
• QPX2012: Wire Penetrameter ASTM E747-97, Set B – Stainless, 2″ long.
• QPX2014: Wire Penetrameter ASTM E747-97, Set C – Stainless, 2″ long.
• QPX2016: Wire Penetrameter ASTM E747-97, Set D – Stainless, 2″ long.

* Also available in aluminum and copper.

• QPX2018: Penetrameter ASTM E747-97, Set A wire type – Titanium, 2″ long.
• QPX2020: Penetrameter ASTM E747-97, Set B wire type – Titanium, 2″ long.

* Also available in Inconel.
