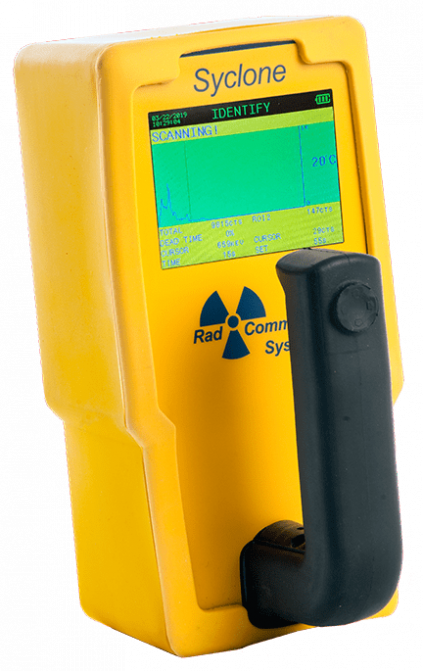

Syclone – Portable Radiation Detector and Spectrometer

SKU: N/A

0.00$

Clear
Quantity:

Product Description

Download :

Specs sheet

Syclone – Portable Radiation Detector and Spectrometer

High sensitivity handheld radiation detector and spectrometer for detecting and identifying very low radiation levels from radioactive materials. The software is easy to use so untrained user can identify radioactive contaminants (Medical, Industrial, NORM, SNM). Advanced analysis can be done using the peaks in the histogram and/or using the supplied RadView analysis software.

The ideal tool to search and identify a radioactive contaminant.

  • Audio and visual alarm.
  • Energy range: 30 KeV to 3.0 MeV.
  • Sodium Iodide thallium doped crystal detectors (NaI(Tl)) 1.5″ x 2″ (38mm x 51mm).
  • Energy resolution: 8% or better at 662 keV.
  • Rugged Geiger-Mueller tube for dose range to 1oR/h (100mSv/h).
  • Lithium-ion battery with charger (120VAC). Battery life up to 8 hours.
  • Large backlit display, 3.5″ (89mm).

OPTIONS

  • Neutron detector (He3 or alternative).
  • GPS
  • Bluetooth
  • Geophysics application.
  • Automatic energy stabilization (no check source).



    • Syclone: Handheld detector and NaI(Tl) spectrometer with protective rubber boot, 120VAC wall charger, USB cable, RadView software, user manual, calibration certificate and rigid carrying case.
    • Syclone Ne: Handheld detector and NaI(Tl) spectrometer with optional Neutron detector, protective rubber boot, 120VAC wall charger, USB cable, RadView software, user manual, calibration certificate and rigid carrying case.

Additional Information

Model

Syclone, Syclone Ne
