QNDE Rigid Boroscope
Rigid units provide a significantly higher resolution than fiberscopes and videoscopes at a much lower price. All made of stainless, they are waterproof and equipped with a 32mm universal eyepiece. These German scopes have a Field of View (FOV) of 55° and are available in diameters of 2.7mm, 3.0mm, 4.0mm, 5.0mm and 6.0mm (0.11″, 0.12″, 0.16″, 0.19″ and 0.20″), with a working length up to 600mm (23.6”) and Direction of View (DOV) of 0°, 30°, 70°, 90° or 110°.
The light connector allows coupling to most commercial light sources available on the market (ACMI, Storz, Olympus and Wolf).
2.7×175
- 2.7×175-0: Rigid boroscope, 2.7mm (0.11″) in diameter x 175mm (6.88″) working length – 0° DOV with 107 lumens LED light handle (3x AAA batteries).
- 2.7×175-30: Rigid boroscope, 2.7mm (0.11″) in diameter x 175mm (6.88″) working length – 30° DOV with 107 lumens LED light handle (3x AAA batteries).
- 2.7×175-70: Rigid boroscope, 2.7mm (0.11″) in diameter x 175mm (6.88″) working length – 70° DOV with 107 lumens LED light handle (3x AAA batteries).
3.0×302
- 3.0×302-0: Rigid boroscope, 3.0mm (0.12″) in diameter x 302mm (11.88″) working length – 0° DOV with 107 lumens LED light handle (3x AAA batteries).
- 3.0×302-30: Rigid boroscope, 3.0mm (0.12″) in diameter x 302mm (11.88″) working length – 30° DOV with 107 lumens LED light handle (3x AAA batteries).
- 3.0×302-70: Rigid boroscope, 3.0mm (0.12″) in diameter x 302mm (11.88″) working length – 70° DOV with 107 lumens LED light handle (3x AAA batteries).
4.0×302

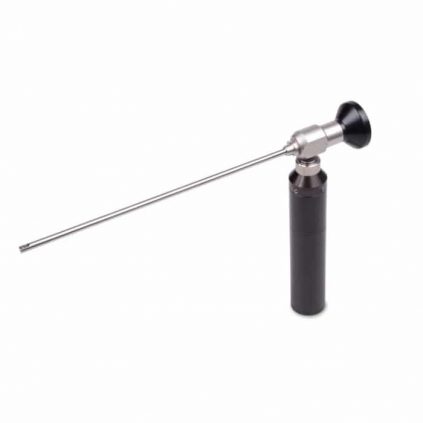

- 4.0×302-0: Rigid boroscope, 4.0mm (0.16″) in diameter x 302mm (11.88″) working length – 0° DOV with 107 lumens LED light handle (3x AAA batteries).
- 4.0×302-30: Rigid boroscope, 4.0mm (0.16″) in diameter x 302mm (11.88″) working length – 30° DOV with 107 lumens LED light handle (3x AAA batteries).
- 4.0×302-70: Rigid boroscope, 4.0mm (0.16″) in diameter x 302mm (11.88″) working length – 70° DOV with 107 lumens LED light handle (3x AAA batteries).
- 4.0×302-90: Rigid boroscope, 4.0mm (0.16″) in diameter x 302mm (11.88″) working length – 90° DOV with 107 lumens LED light handle (3x AAA batteries).
- 4.0×302-110: Rigid boroscope, 4.0mm (0.16″) in diameter x 302mm (11.88″) working length – 110° DOV with 107 lumens LED light handle (3x AAA batteries).
4.0×430
- 4.0×430-0: Rigid boroscope, 4.0mm (0.16″) in diameter x 430mm (16.92″) working length – 0° DOV with 107 lumens LED light handle (3x AAA batteries).
- 4.0×430-30: Rigid boroscope, 4.0mm (0.16″) in diameter x 430mm (16.92″) working length – 30° DOV with 107 lumens LED light handle (3x AAA batteries).
- 4.0×430-70: Rigid boroscope, 4.0mm (0.16″) in diameter x 430mm (16.92″) working length – 70° DOV with 107 lumens LED light handle (3x AAA batteries).
- 4.0×430-90: Rigid boroscope, 4.0mm (0.16″) in diameter x 430mm (16.92″) working length – 90° DOV with 107 lumens LED light handle (3x AAA batteries).
- 4.0×430-110: Rigid boroscope, 4.0mm (0.16”) in diameter x 430mm (16.92”) working length – 110° DOV with 107 lumens LED light handle (3x AAA batteries).
5.0×600
- 5.0×600-0: Rigid boroscope, 5.0mm (0.19″) in diameter x 600mm (23.6″) working length – 0° DOV with 107 lumens LED light handle (3x AAA batteries).
- 5.0×600-30: Rigid boroscope, 5.0mm (0.19″) in diameter x 600mm (23.6″) working length – 30° DOV with 107 lumens LED light handle (3x AAA batteries).
- 5.0×600-70: Rigid boroscope, 5.0mm (0.19″) in diameter x 600mm (23.6″) working length – 70° DOV with 107 lumens LED light handle (3x AAA batteries).
- 5.0×600-90: Rigid boroscope, 5.0mm (0.19″) in diameter x 600mm (23.6″) working length – 90° DOV with 107 lumens LED light handle (3x AAA batteries).
6.0×430
- 6.0×430-0: Rigid boroscope, 6.0mm (0.20″) in diameter x 430mm (16.92″) working length – 0° DOV with 107 lumens LED light handle (3x AAA batteries).
- 6.0×430-30: Rigid boroscope, 6.0mm (0.20″) in diameter x 430mm (16.92″) working length – 30° DOV with 107 lumens LED light handle (3x AAA batteries).
- 6.0×430-70: Rigid boroscope, 6.0mm (0.20″) in diameter x 430mm (16.92″) working length – 70° DOV with 107 lumens LED light handle (3x AAA batteries).
- 6.0×430-90: Rigid boroscope, 6.0mm (0.20″) in diameter x 430mm (16.92″) working length – 90° DOV with 107 lumens LED light handle (3x AAA batteries).
- 6.0×430-110: Rigid boroscope, 6.0mm (0.20″) in diameter x 430mm (16.92″) working length – 110° DOV with 107 lumens LED light handle (3x AAA batteries).
Add-on
- CAM: Portable boroscope CCD camera, (1,300,000 pixel resolution), with 7″ LCD color monitor.
