Positector SPG Surface Profile Tester

The DeFelsko Positector SPG uses a spring loaded needle to measures and records the peaks and valleys of the surface (metals, concrete, etc.) – 50 readings per minute. The alumina wear face and the field replaceable tungsten carbide tip are designed for long life and continuous accuracy.

The PosiTector body accepts all PosiTector probes converting your surface profile tester to a coating thickness gauge, dew point meter, surface profile gauge, wall thickness gauge and more (see probe compatibility chart here attached).

USB, Wifi and Bluetooth connectivity to PosiSoft PC, MAC and Smarthphone software. Durable, it is solvent, acid, oil, water and dust resistant (IP65) and delivered with a 2 year warranty.

  • Standard kit includes: PosiTector SPG data logging unit with upper and lower limits capability and (Okay/NOT good) alarm, integral probe with field replaceable tungsten carbide tip, glass zero plate, roughness test plate, protective rubber holster, wrist strap, three AAA alkaline batteries, USB cable for data transfer and/or continuous power supply, PosiSoft software, user manual, calibration certificate and rigid transport case.

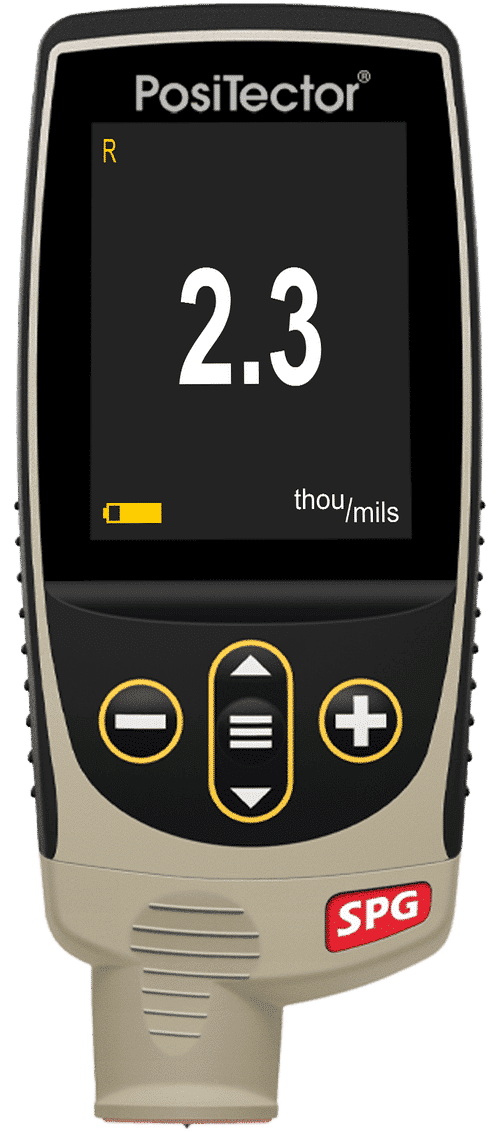

    • SPG-1: Positector SPG unit (250 readings per probe) with integral probe – Complete kit.

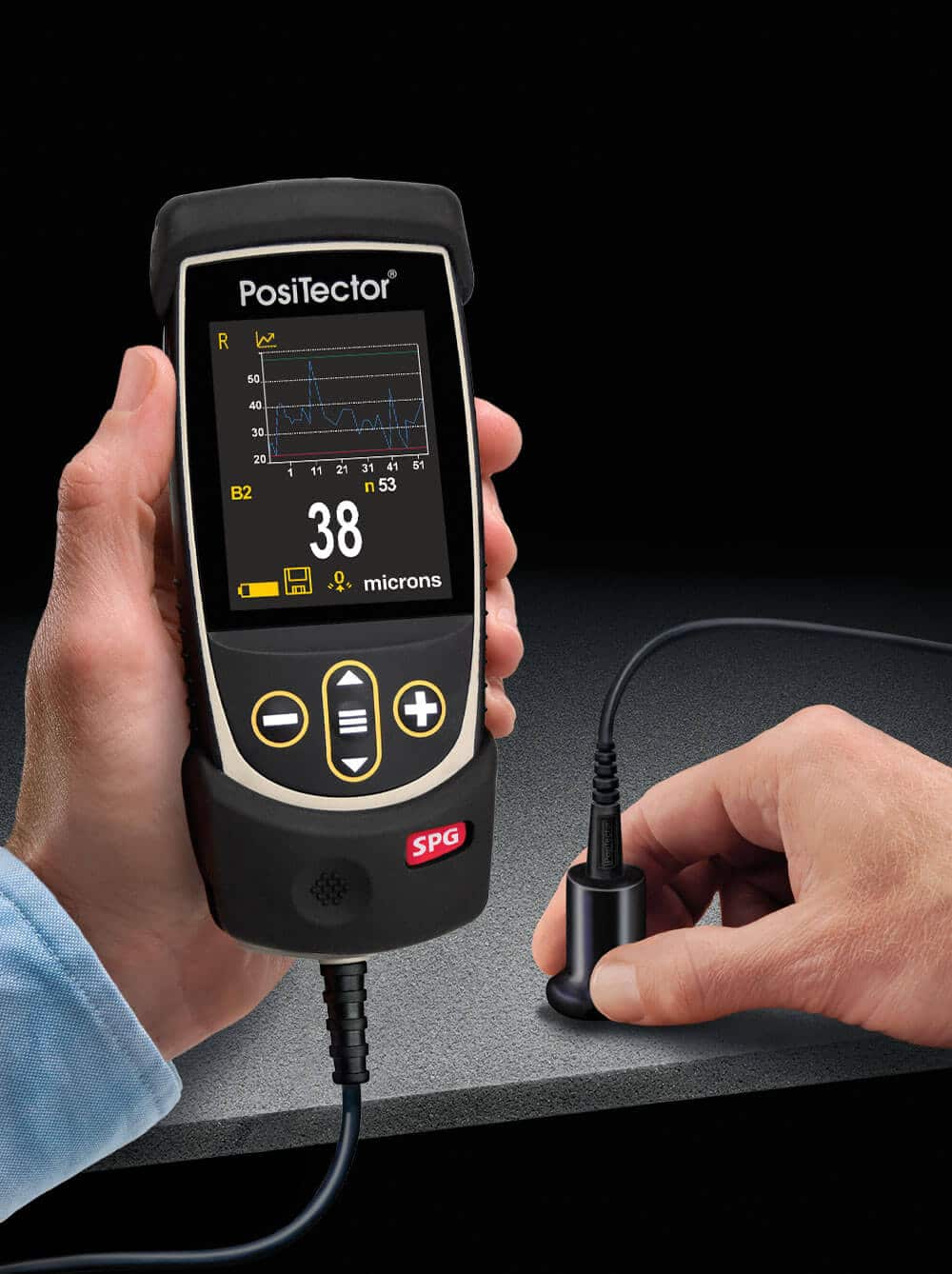

    • SPG-S1: Positector SPG unit (250 readings per probe) with 1.0m (39″) cabled probe – Complete kit.
    • SPG-CS1: Positector SPG unit (250 readings per probe) with 1.0m (39″) cabled probe for textured coatings – Complete kit.
    • SPG-TS1: Positector SPG unit (250 readings per probe) with 1.0m (39″) cabled probe for concrete profile – Complete kit.
    • SPG-3: Identical to the Positector SPG-1 unit with data storage for 250,000 readings, live graphing of measurements, Wifi and Bluetooth capability.
    • SPG-S3: Identical to the Positector SPG-S1 unit with data storage for 250,000 readings, live graphing of measurements, Wifi and Bluetooth capability.
    • SPG-CS3: Identical to the Positector SPG-CS1 unit with data storage for 250,000 readings, live graphing of measurements, Wifi and Bluetooth capability.
    • SPG-TS3: Identical to the Positector SPG-TS1 unit with data storage for 250,000 readings, live graphing of measurements, Wifi and Bluetooth capability.

Options

  • SPG60: Replacement 60° tungsten carbide tip kit.
  • SPG30: Replacement 30° tungsten carbide tip kit.
  • SPGT: Replacement “T – Textured Coating” tungsten carbide tip kit.
  • SPGC: Replacement “C – Concrete” tungsten carbide probe tip kit.
  • SPGZERO: Non-certified metal shim & glass zero plate.

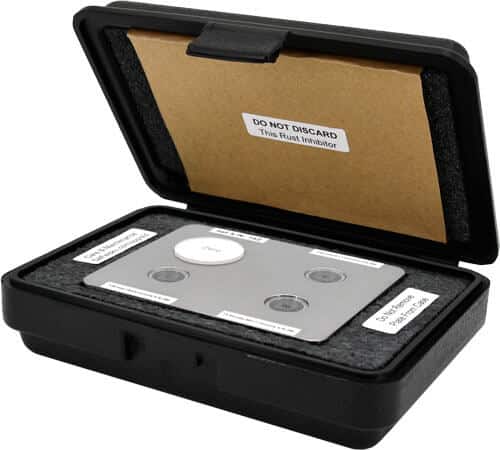

  • STDSPG: Certified SPG surface profile standards (kit).
  • PWR: AC power kit for continuous operation with 120VAC, 240VAC or via the built-in USB port.
  • PRINT: Lightweight Bluetooth thermal paper printer (advanced models ONLY).

Contact us to discuss your application, requirements, available options and/or receive a quote.

Additional Information

Model

SPG-1, SPG-S1, SPG-CS1, SPG-TS1, SPG-3, SPG-S3, SPG-CS3, SPG-TS3

Options

None, SPG60, SPG30, SPGT, SPGC, SPGZERO, STDSPG, PWR, PRINT
