QNDE Custom X-Ray Room

Lead-lined Industrial X-ray room.

  • Generally made of steel/lead/steel panels it can also be made of concrete/lead/drywall or other materials (concrete, cinder blocks, wood, plywood, etc.).
  • Lead thickness is determined by the energy level and X-ray technique.
  • Dimensions are dictated by the part sizes and X-ray techniques.

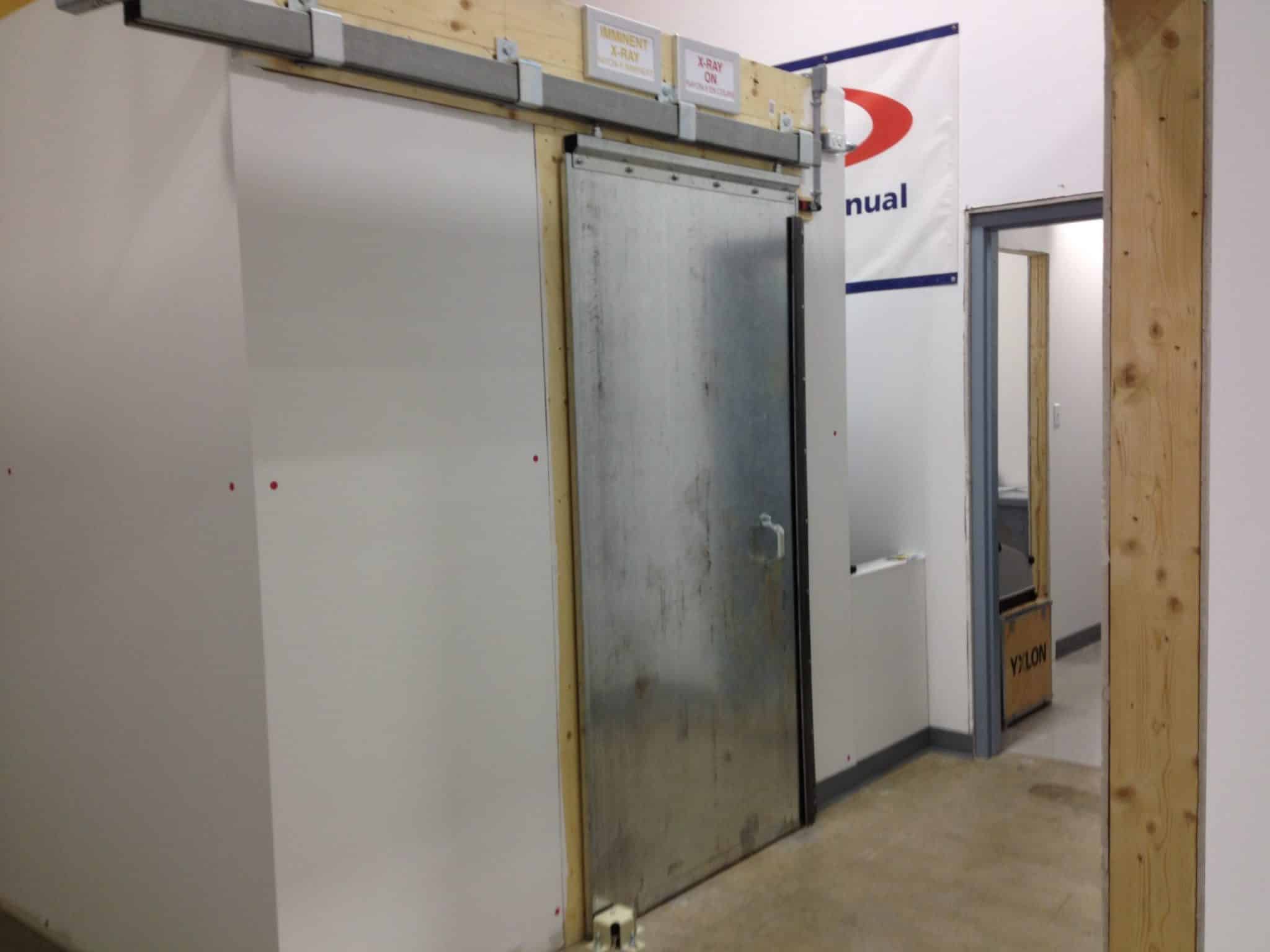

  • Can be equipped with one or two sliding doors; manually or air operated.
  • Health and safety components (per international requirements):
    • Door safety switch with dual low voltage contacts (level 4 security).
    • External LED Illuminated red warning sign “X-RAY ON”, single faced.
    • External LED Illuminated yellow warning sign “IMMINENT X-RAY”, single face.
    • Internal LED warning tower light (Red, Yellow, Green) with buzzer and Emergency-stop).
  • Radiation Leakage Survey Certificate.
  • Health & Safety CODE 34 certification.


Custom lead room can be built to your specific dimensions and needs. Dimensional drawings will be supplied for your approval prior to manufacturing.
